SERVERS USED FOR MOUNTAIN SKY SCHOOL PROJECT


  - We will use IBM servers for our network:

Product name

IBM xSeries 235

Product view

Details

- The IBM eserver xSeries 235 uses Intel® Xeon™ processors, providing you with power and performance at an affordable price. Offering a pathway for future growth, the x235 provides superior expandability with up to 12GB of DDR memory, internal storage capability up to 660GB and six available PCI slots. Integrated Gigabit Ethernet provides high-speed networking bandwidth while keeping all slots free for other adapters
- The xSeries 235 delivers integrated Ultra320 RAID-1 functionality, which provides the ability to mirror hard disk drives for data protection and even higher server availability

Price $3500

Product name

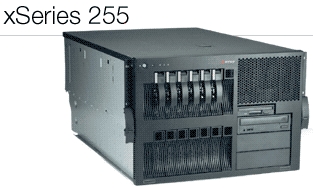

IBM xSeries 255

Product view

Details

- The xSeries 255 is the comprehensive server and storage solution providing maximum internal scalability, 4-way Intel® Xeon™ processor performance and industry-leading system management. Packed with IBM X-Architecture™ features that deliver high-availability at an affordable price, the x255 will meet and exceed your enterprise application needs

Price $6500
