MOUNTAIN SKY BUILDING A EAST WIRING MAP

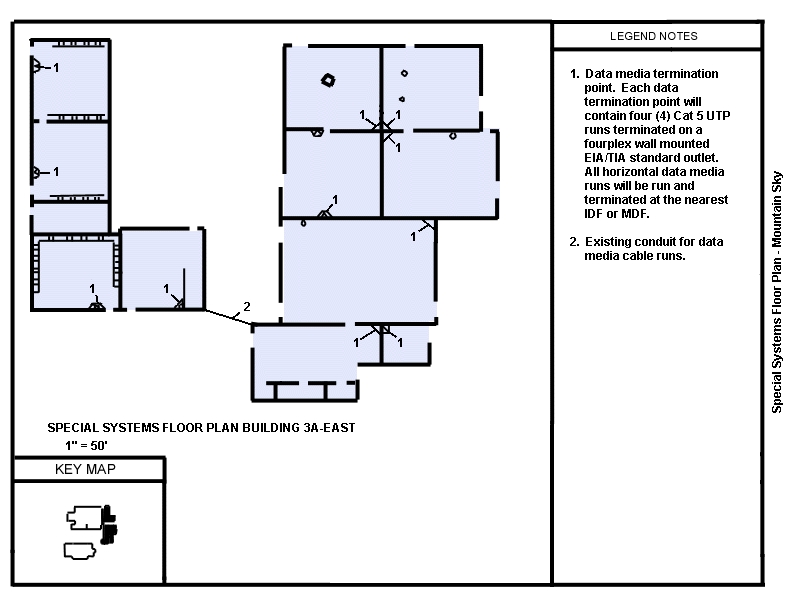

- Mountain Sky Building A East Unwired Map
|
|
|
Click on picture to enlarge |

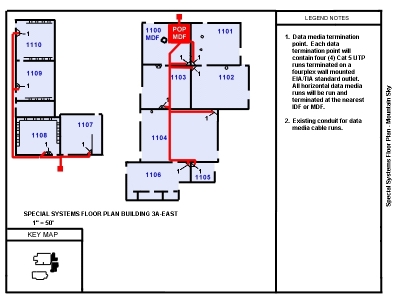

- Mountain Sky Building A East Wiring Map
|
|
|
Click on picture to enlarge |
- This topology characteristics:
- We have numbered all rooms requiring
connections so that rooms 1100 to 1110 are all requiring cable runs; room
1100 is School's POP (Point-of-Presence) and MDF (Main distribution
facility)
- Rooms requiring connection are numbered and
contain an 1, which is the data media termination point; this termination
point will contain 4 CAT 5 UTP runs terminated on a fourplex wall mounted
EIA/TIA standard outlet; 3 runs are for curriculum computers and one for
teacher's
- Explanation of colours from MAPs:
- With RED we have represented the POP and MDF room and
also CAT 5 UTP (Category 5 Unshielded Twisted Pair) cable used to connect all
those rooms to the MDF
