MOUNTAIN SKY MULTI-PURPOSE BUILDING WIRING MAP

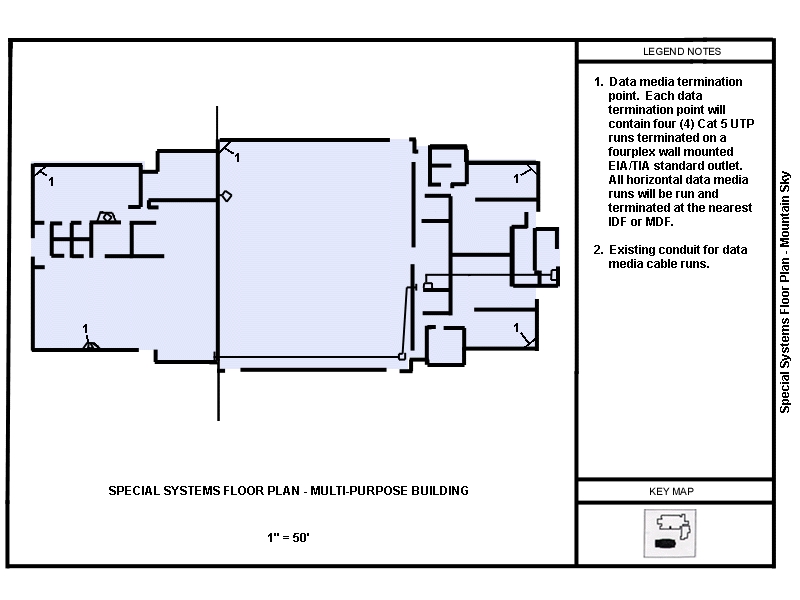

- Mountain Sky Multi-Purpose Building Unwired Map
|
|
|
Click on picture to enlarge |

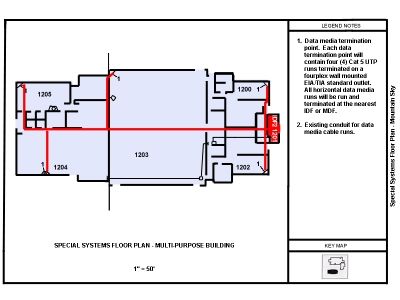

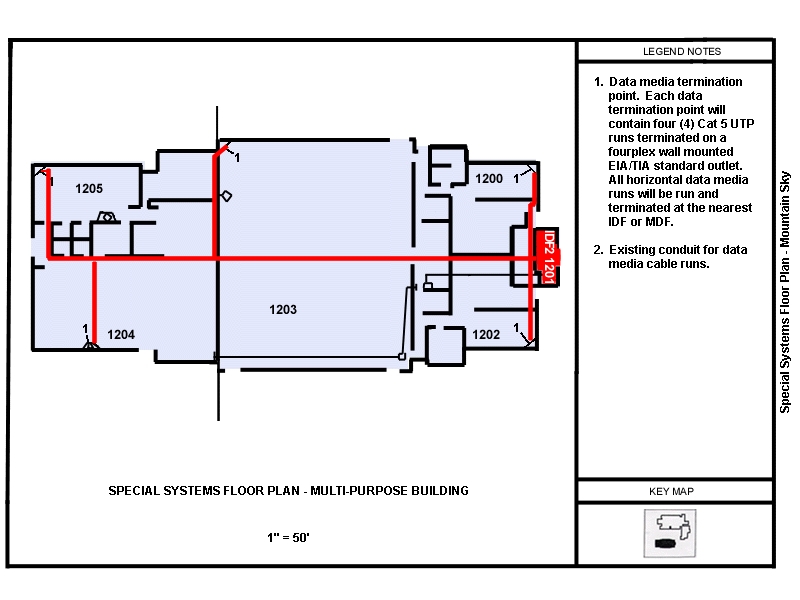

- Mountain Sky Multi-Purpose Building Wiring Map
|
|
|
Click on picture to enlarge |

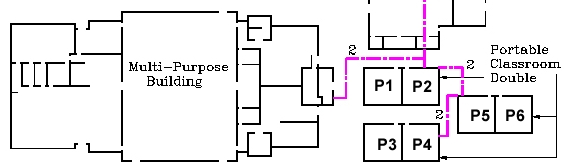

- Portable Classrooms Unwired
|
|

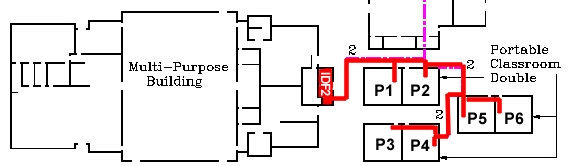

- Portable Classrooms Wiring Map
 |
- This topology characteristics:
- We have numbered all rooms requiring connection
so that rooms 1200 to 1205 are all requiring cable
runs; room 1201 is used for the IDF2
- Rooms requiring connection are numbered and
contain an 1, which is the data media termination point; this termination
point will contain 4 CAT 5 UTP runs terminated on a fourplex wall mounted
EIA/TIA standard outlet; 3 runs are for curriculum computers and one for
teacher's
- Explanation of colours from MAPs:
- With RED we have represented the IDF2 room and
CAT 5 UTP (Category 5 Unshielded Twisted Pair) cable used to connect all
those rooms to the IDF2
